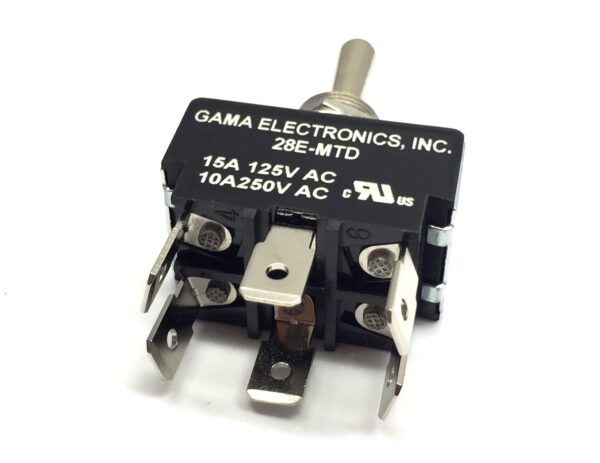

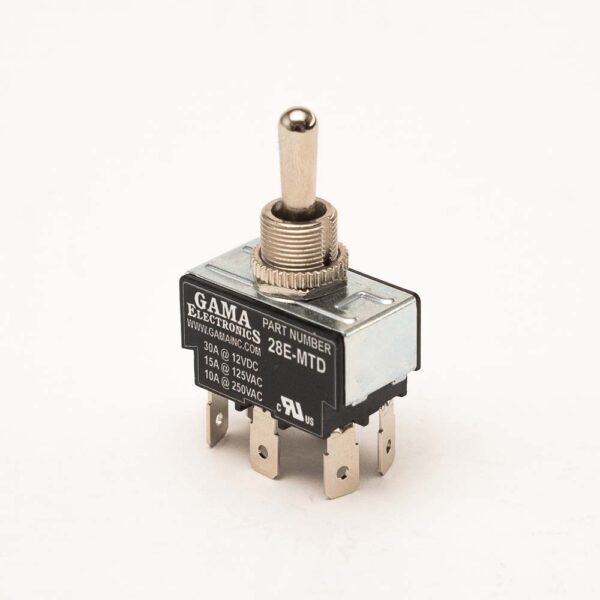

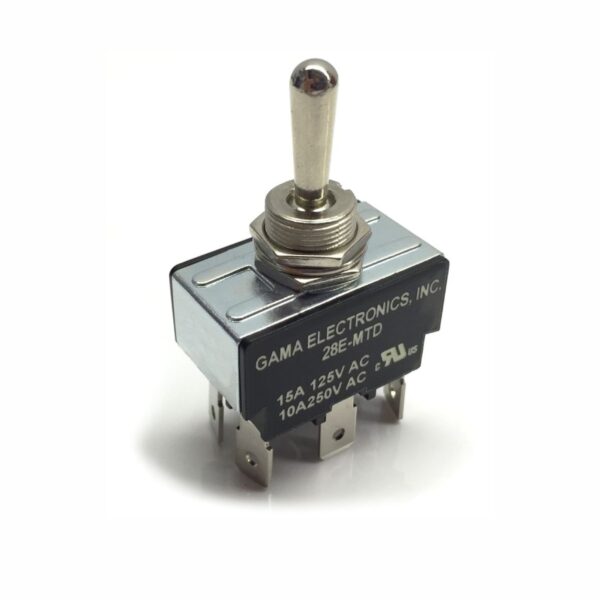

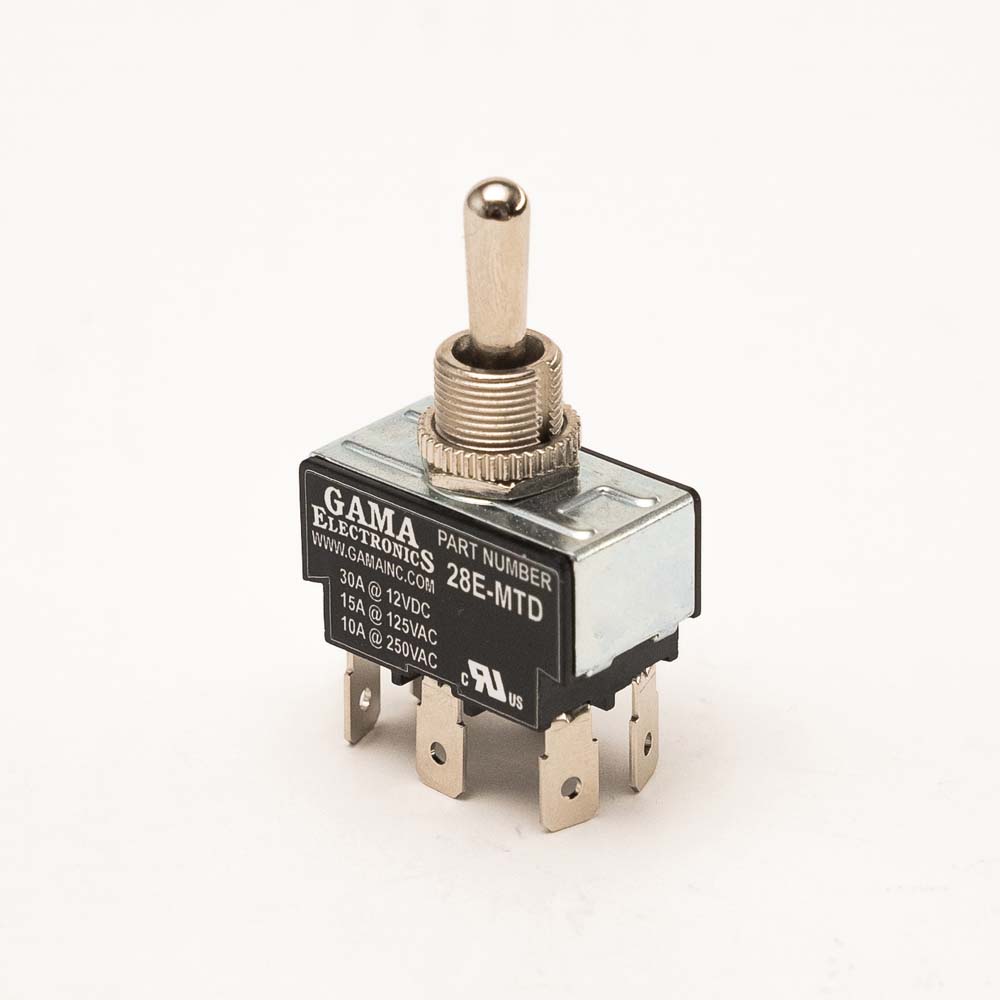

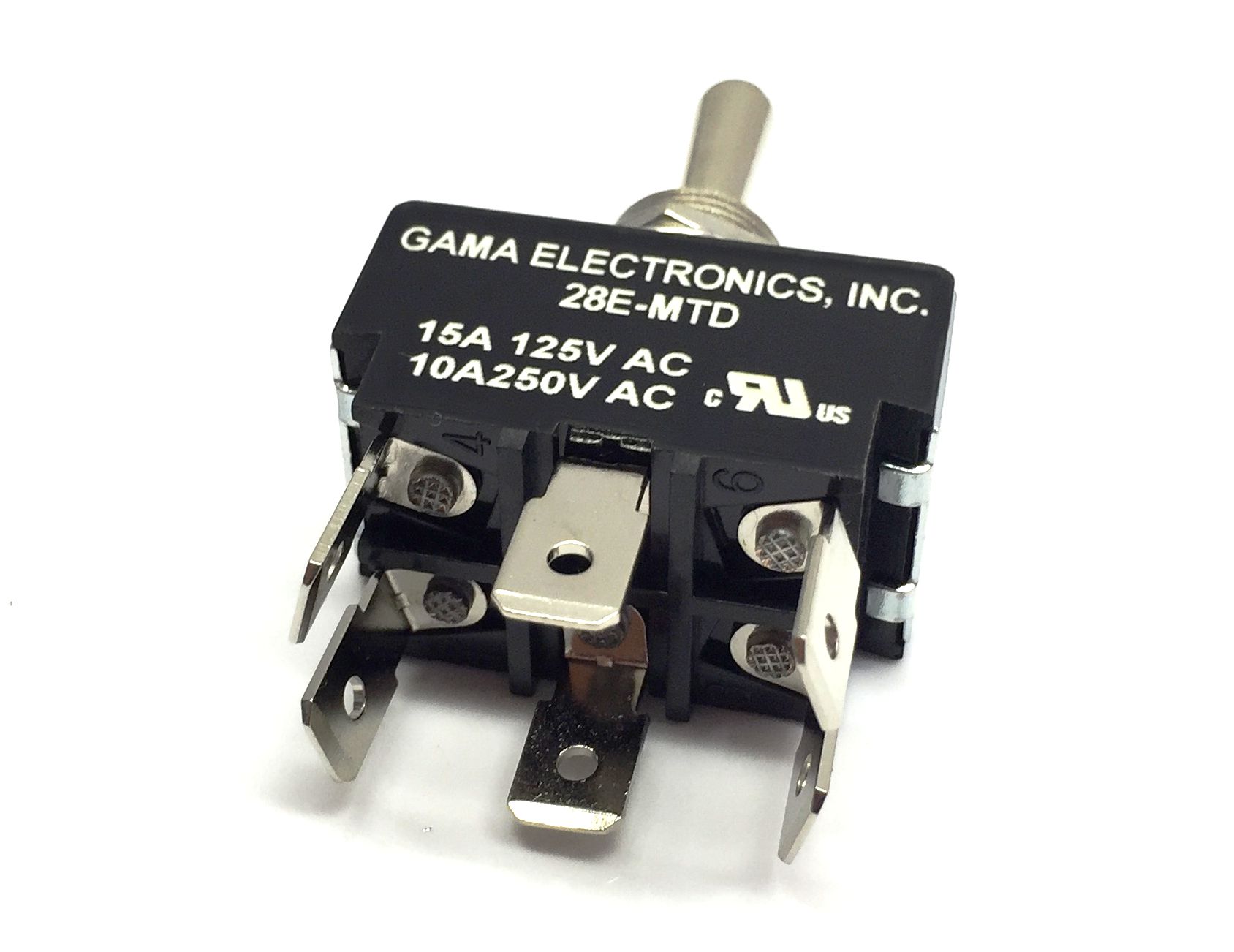

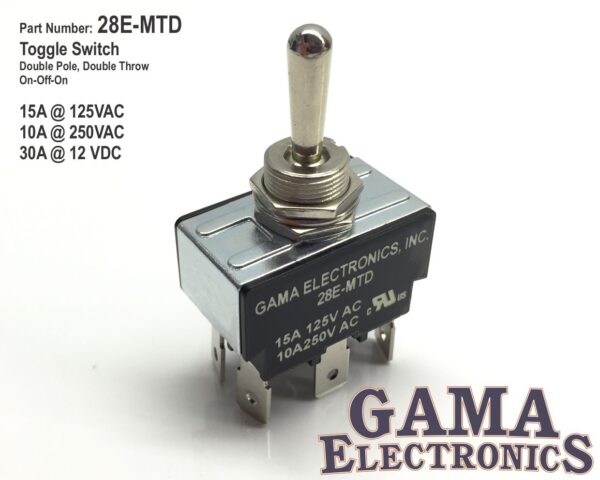

28E-MTD

Toggle Switch, 30A DPDT 3-Position On-Off-On

[et_pb_section fb_built=”1″ _builder_version=”3.22″ custom_padding=”0px||||false|false”][et_pb_row _builder_version=”3.25″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||0px||false|false”][et_pb_column type=”4_4″ _builder_version=”3.25″ custom_padding=”|||” custom_padding__hover=”|||”][et_pb_wc_breadcrumb _builder_version=”3.0.47″][/et_pb_wc_breadcrumb][et_pb_wc_cart_notice _builder_version=”3.0.47″][/et_pb_wc_cart_notice][/et_pb_column][/et_pb_row][et_pb_row column_structure=”1_2,1_2″ _builder_version=”3.25″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%” custom_padding=”0px||||false|false”][et_pb_column type=”1_2″ _builder_version=”3.25″ custom_padding=”|||” custom_padding__hover=”|||”][et_pb_wc_images _builder_version=”3.0.47″][/et_pb_wc_images][/et_pb_column][et_pb_column type=”1_2″ _builder_version=”3.25″ custom_padding=”|||” custom_padding__hover=”|||”][et_pb_wc_title _builder_version=”3.0.47″][/et_pb_wc_title][et_pb_wc_rating _builder_version=”3.0.47″][/et_pb_wc_rating][et_pb_wc_price _builder_version=”3.0.47″][/et_pb_wc_price][et_pb_wc_description _builder_version=”3.0.47″][/et_pb_wc_description][et_pb_wc_add_to_cart _builder_version=”3.0.47″][/et_pb_wc_add_to_cart][et_pb_wc_meta _builder_version=”3.0.47″][/et_pb_wc_meta][/et_pb_column][/et_pb_row][et_pb_row _builder_version=”3.25″ background_size=”initial” background_position=”top_left” background_repeat=”repeat” width=”100%”][et_pb_column type=”4_4″ _builder_version=”3.25″ custom_padding=”|||” custom_padding__hover=”|||”][et_pb_wc_tabs _builder_version=”3.0.47″] [/et_pb_wc_tabs][et_pb_wc_upsells _builder_version=”3.0.47″][/et_pb_wc_upsells][et_pb_wc_related_products _builder_version=”3.0.47″][/et_pb_wc_related_products][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fb_built=”1″ admin_label=”section” _builder_version=”3.22″][et_pb_row admin_label=”row” _builder_version=”3.25″ background_size=”initial” background_position=”top_left” background_repeat=”repeat”][et_pb_column type=”4_4″ _builder_version=”3.25″ custom_padding=”|||” custom_padding__hover=”|||”][et_pb_text admin_label=”Text” _builder_version=”3.27.4″ background_size=”initial” background_position=”top_left” background_repeat=”repeat”]Toggle Switch, 30A DPDT 3-Position On-Off-On

30 amp, Double Pole Double Throw On-Off- On Toggle Switch. This is a maintained switch meaning it stays locked in the selected position. This heavy duty switch mounts in a .48 diameter hole and it has 1/4 quick connect terminals.

Specifications

  • DPDT
  • 15A @ 125VAC, 10A @ 250VAC, 30A @ 12VDC, 1 ½ HP
  • Mounts in a .48 diameter hole and it has 1/4 quick connect terminals.
  • UL & CSA Approved.

[/et_pb_text][/et_pb_column][/et_pb_row][/et_pb_section]

Weight 1.5 oz
Switch Type

,

Downloads

28E-MTD (Standard Model) Drawing PDF (687 KB)
WP28E-MTD (Waterproof Model) Drawing PDF (656 KB)

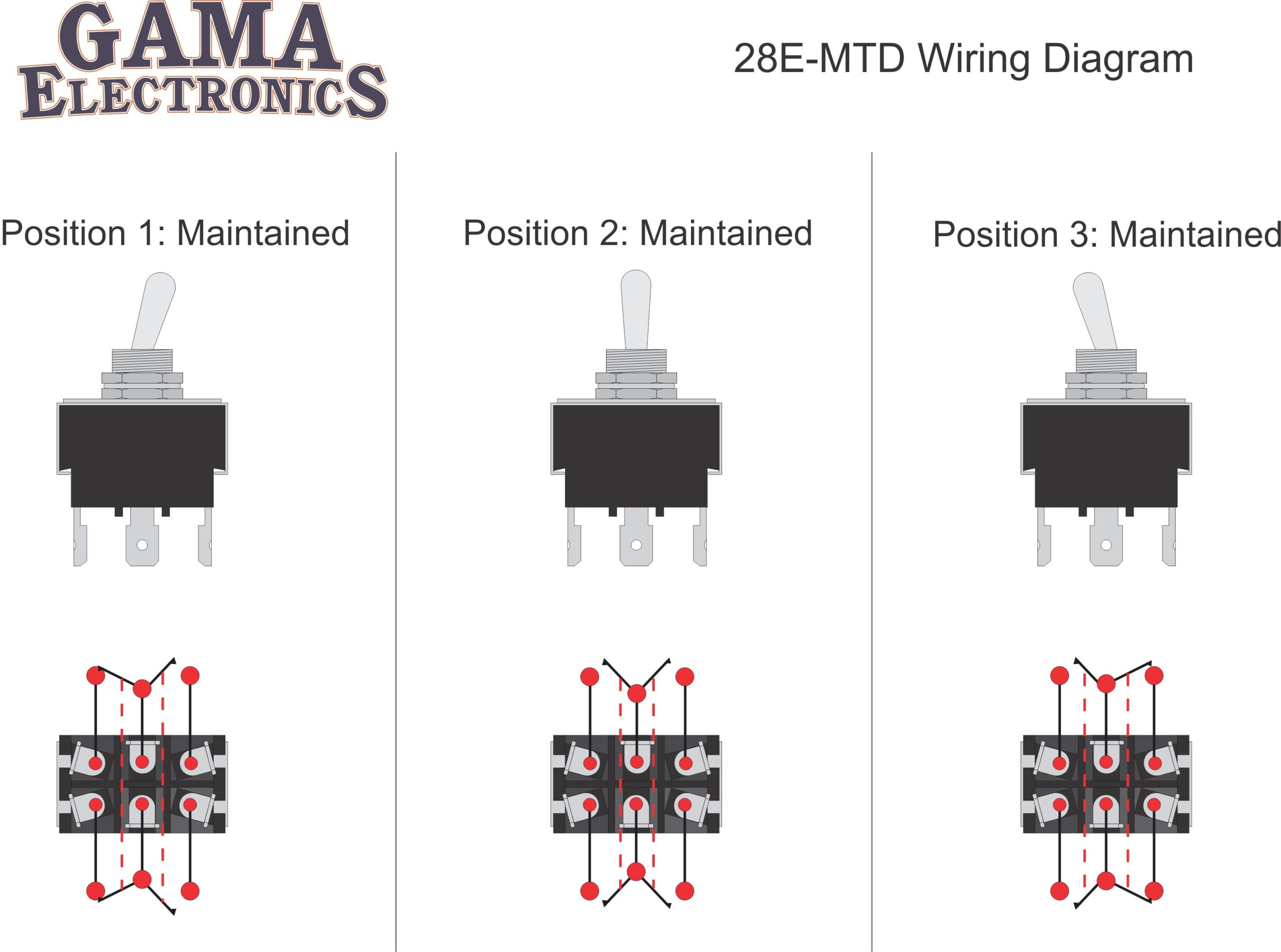

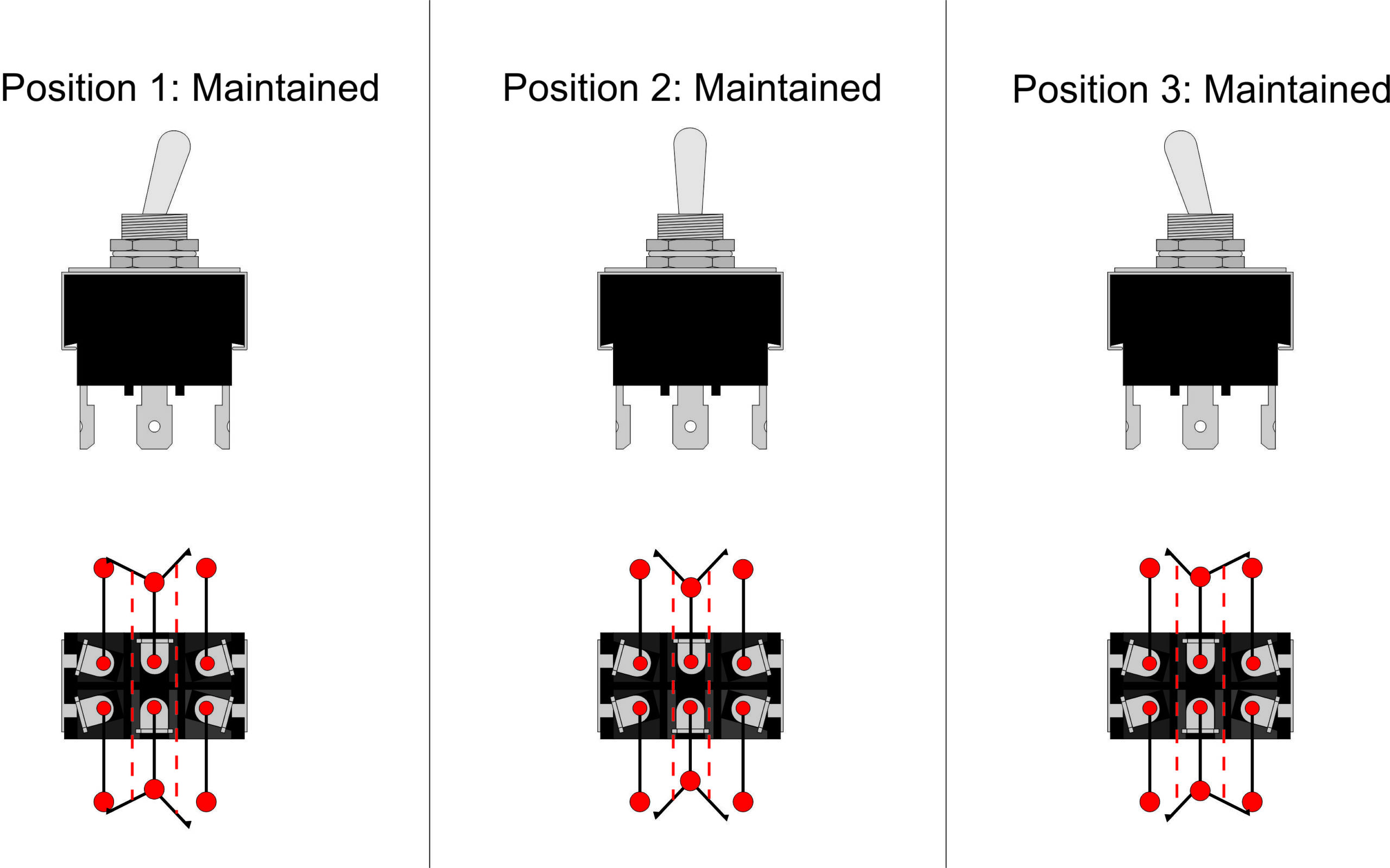

28E-MTD Wiring Diagram PDF (670 KB)
