LRF120V-2PR1L

NOTE: Before purchasing, please review our control selection guide. This guide covers most boat lift, hoist and winch motors. The guide is sorted by motor manufacturer. If your motor is not listed, please refer to the wiring diagrams and/or consult an electrician.

Hoist, Winch and Boat Lift Control Selection Guide.pdf

RF Remote Control System, 2-Motor 120VAC Single Phase, Capacitor Start (4-wire) AC Motor Reversing with Limit Switches

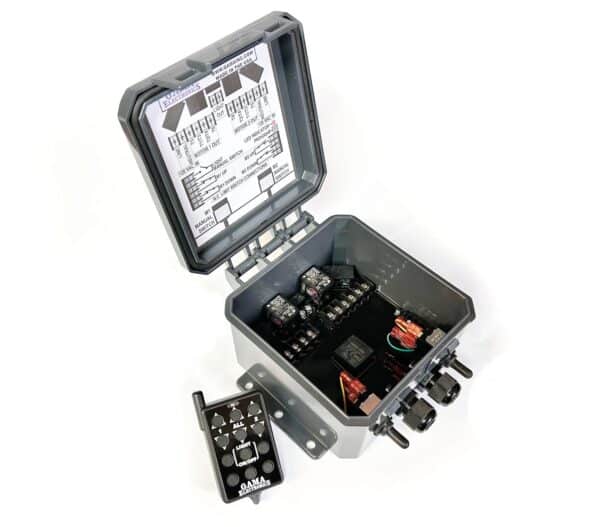

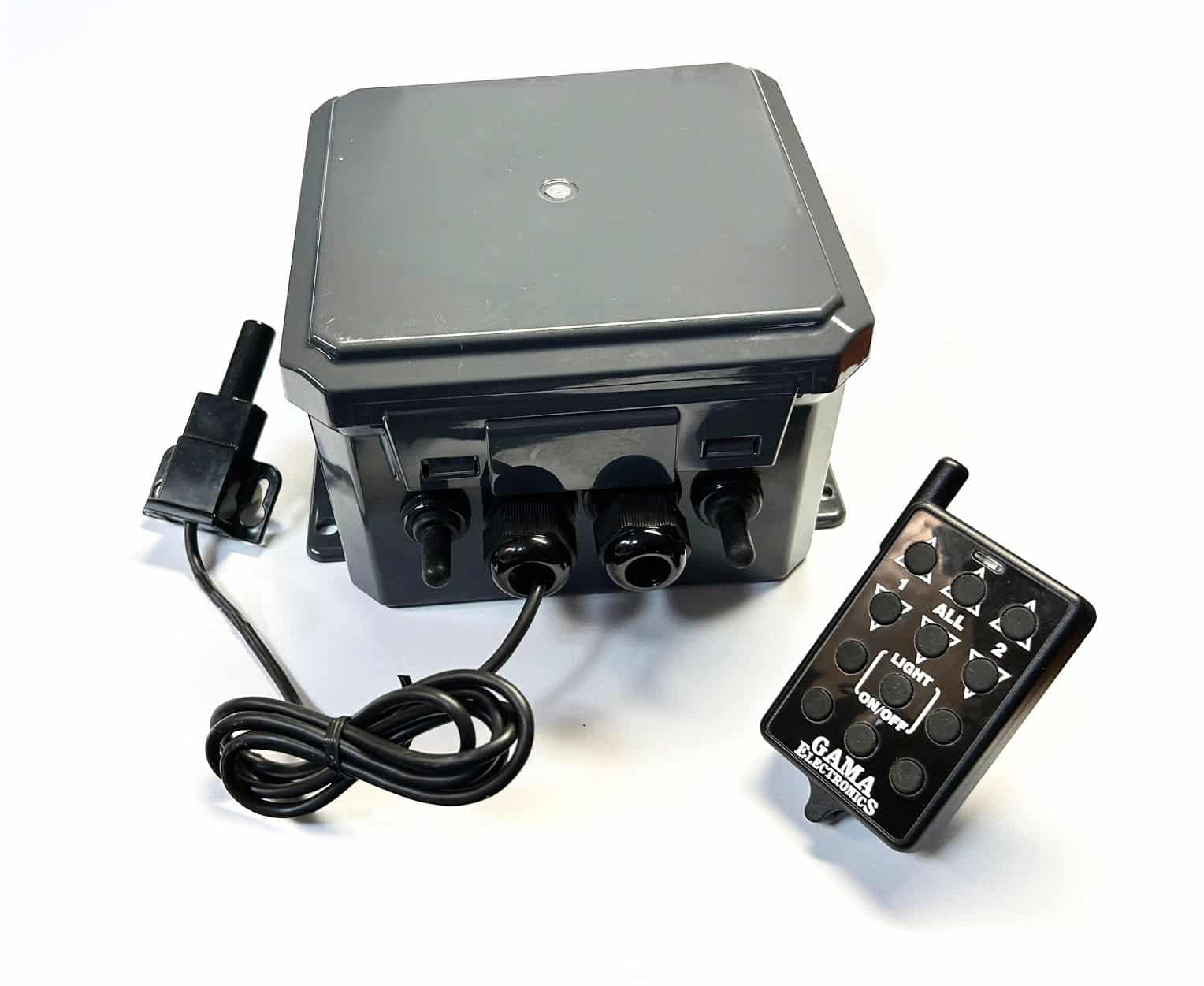

The LRF120V-2PR1L is a 340 MHz RF receiver designed for use with boat lift, winch and rail systems. The receiver operates from 120VAC and provides two polarity reversing outputs for use with four/six lead AC motors. The receiver is equipped with manual toggle switches and an additional latching output is available for connecting to a 120VAC light. The receiver is encased in a waterproof enclosure. The operating range is approximately 500 feet. Operating temperature range – 0° F to 160° F.

Polarity reversing output:

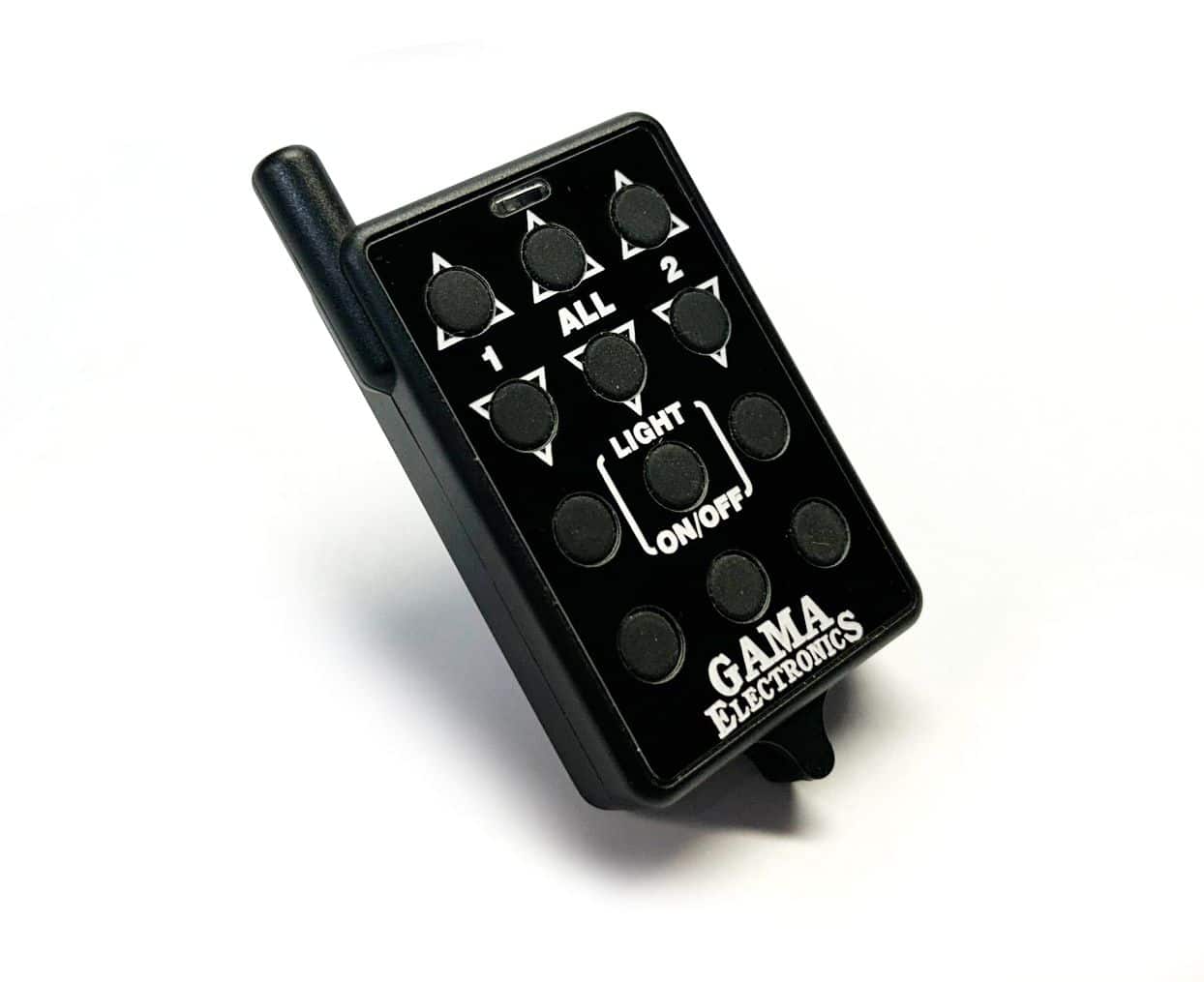

The transmitter has two buttons assigned to each motor output. The up (^) button runs the motor in one direction and down (v) button runs the motor in the opposite direction. The ALL buttons will control both motors simultaneously. The reversing function is accomplished by reversing the phase on two of the 4 motor connections at the receiver output.

Manual switches:
The receiver is equipped with a manual switches that can be used in place of the transmitter.

Light Output:
A button on the transmitter is included for the light output.

Limit switches:
The receiver is equipped with limit switch inputs that allow the user to connect a normally closed limit switch for each motor direction.

Specifications

• Radio Frequency 340 MHz
• Waterproof Enclosure IP67
• The relay contacts are rated at 20 Amps/ 1HP
• External antenna
• Power for the receiver can be in the range of 100 to 132VAC
• Receiver dimensions are approximately 6″ x 6″ x 4″

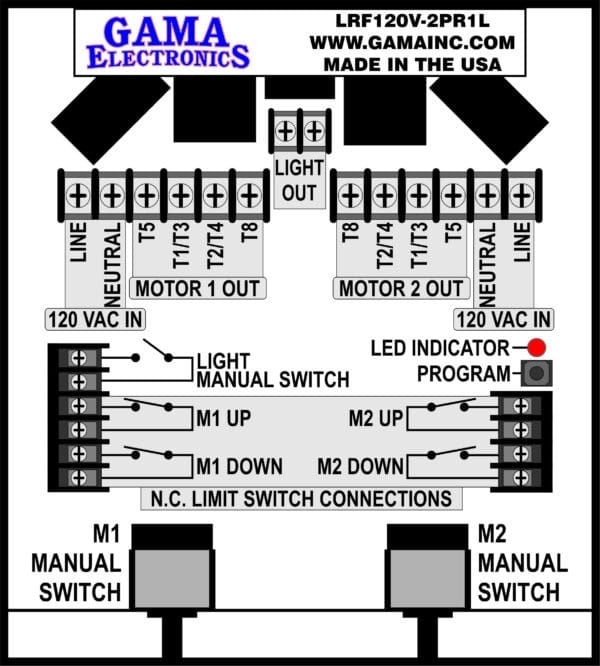

• Refer to the table for motor connections.
