WP66-02

$24.95

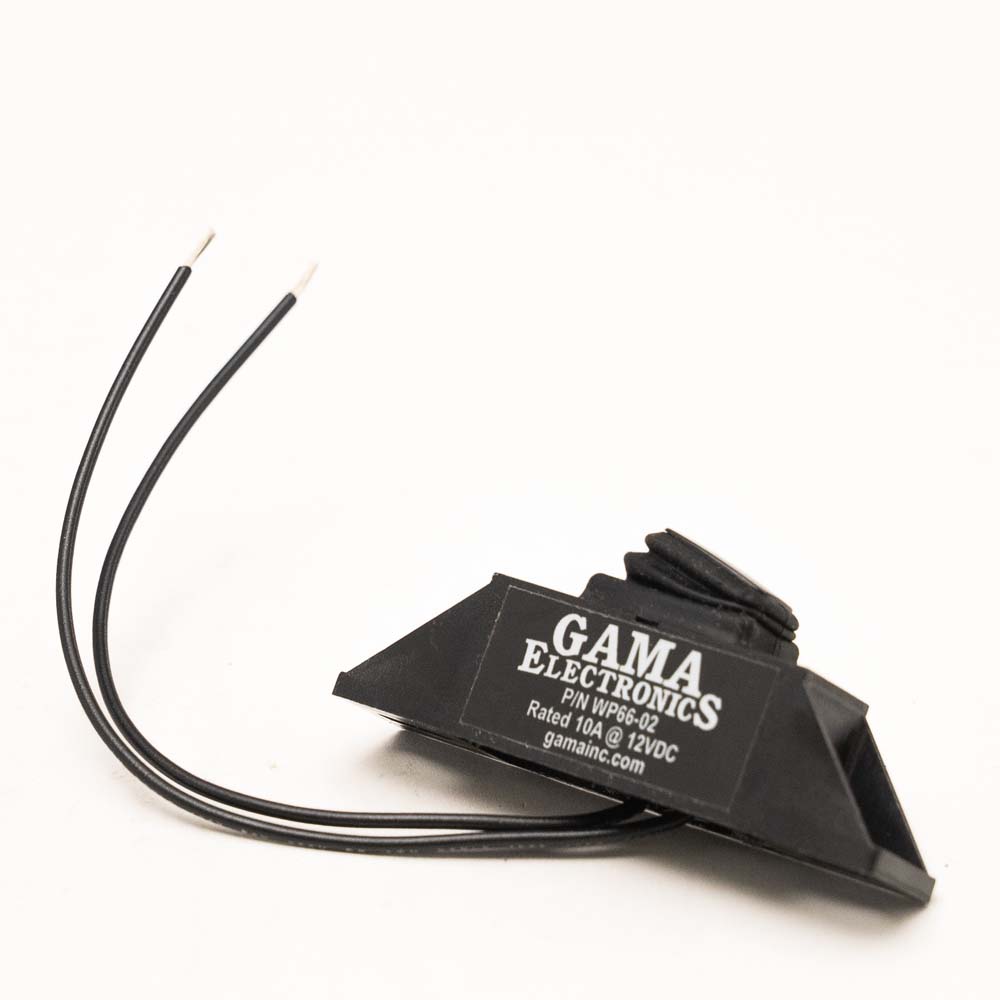

Waterproof Mini Rocker Switch, 10A Off-Momentary On

Waterproof Mini Rocker Switch, 10A Off-Momentary On

This waterproof switch assembly is perfect for outdoor applications or in any wet and harsh environment. It is rated IP67 meaning it is protected from dirt and dust and can withstand immersion in up to 1 meter of water for 30 minutes.

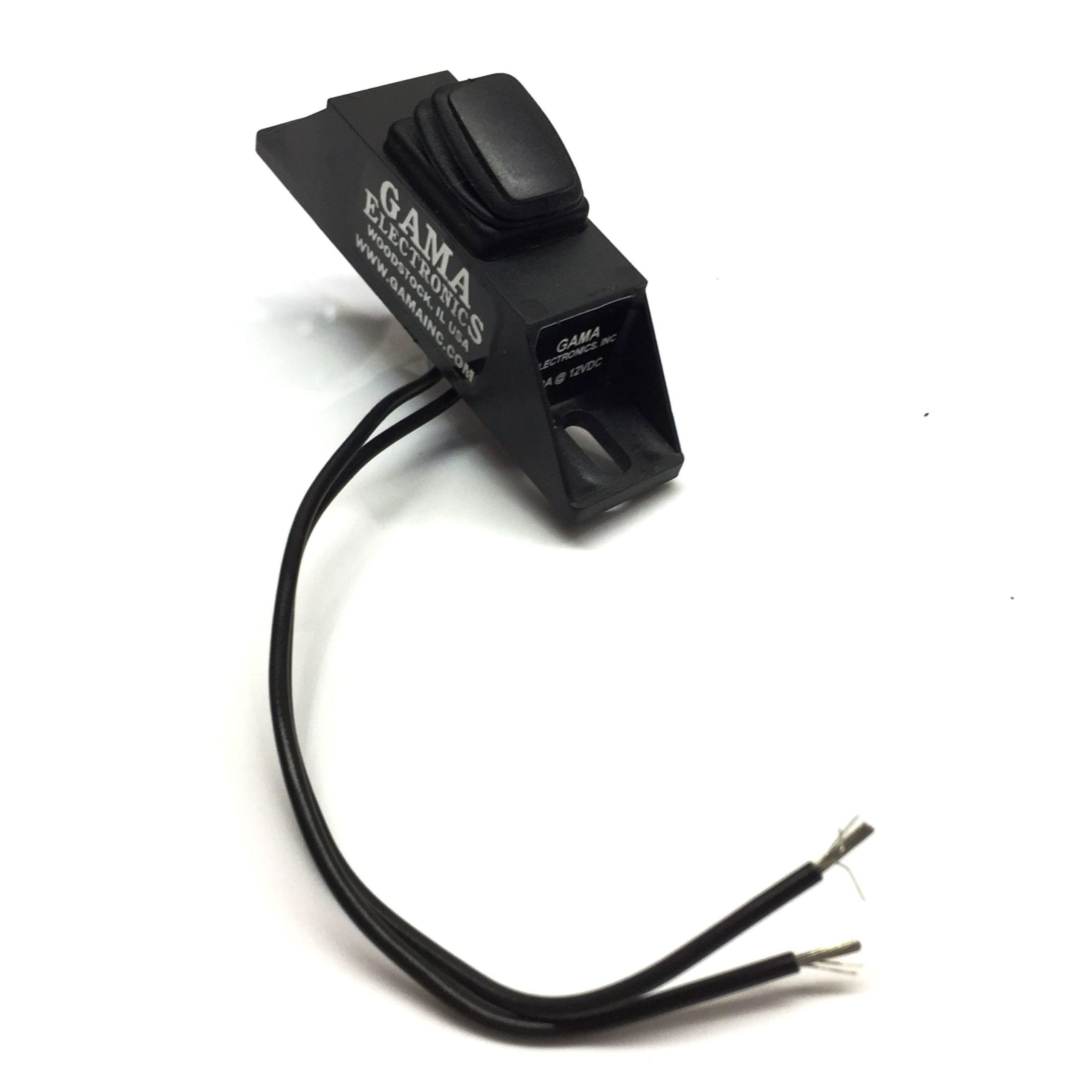

The rugged SPST Off-Momentary On power rocker switch is environmentally sealed. The actuator is sealed by means of a unique, patented integral boot. The switch body and connections are encapsulated in urethane inside a robust ABS enclosure. There are two mounting tabs on the enclosure which allow the switch to be secured to any convenient mounting surface. The dimensions of the enclosure are 3” long x 3/4” wide x 1” high (including the switch button). Wire switch leads are 6” long. The switch is rated at 16A @ 125VAC, 10A @ 250VAC, 10A @ 12VDC.

Note: This switch is momentary meaning it is On as long as the button is held depressed. When the button is released, the switch spring returns to the Off position.

It is ideal for marine applications, construction equipment, automotive accessories or other applications in harsh environments.

Proudly made in the USA.

Specifications

  • SPST Off-Momentary On
  • Rated at 16A 125VAC, 10A 250VAC, 10A 12VDC.
  • Waterproof to IP67
  • 6 inch wire leads
  • Enclosure is 3” long x 3/4” wide x 1” high (including the switch button).
  • UL,CSA & CE Approved
Weight 2 oz

Downloads

WP66-02 Drawing PDF (656 KB)
