WPLS1

Waterproof Limit Switch

This waterproof switch  is perfect for outdoor applications or in any wet and harsh environment.

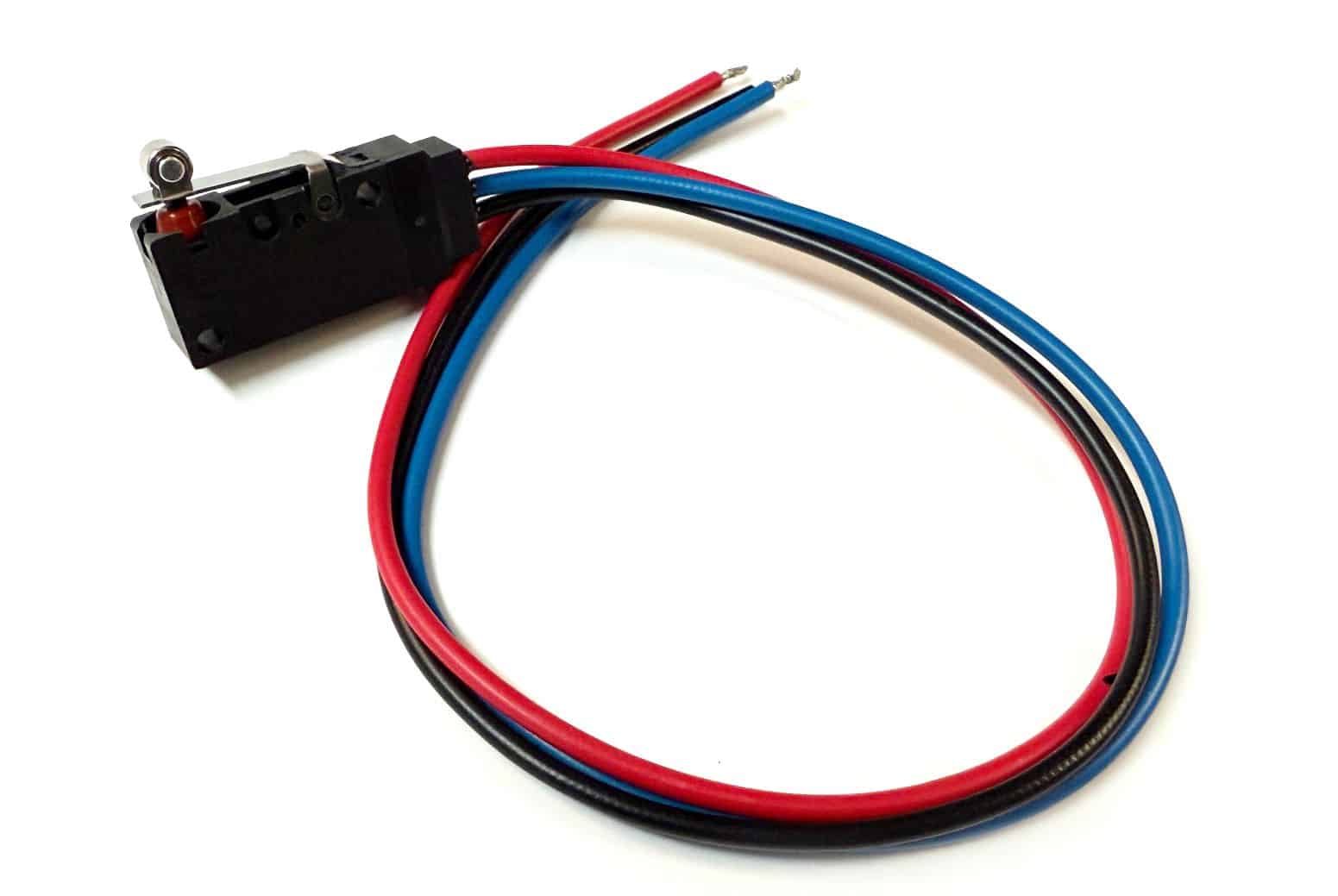

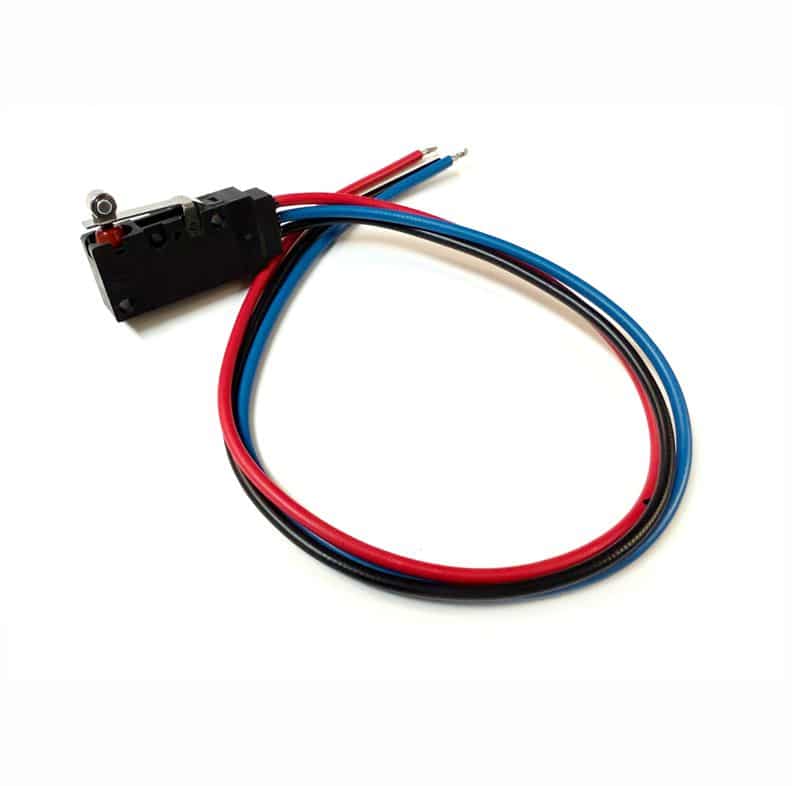

The switch can be used as a normally open or normally closed limit switch. The black wire is common, the red wire is normally closed and the blue wire is normally open.

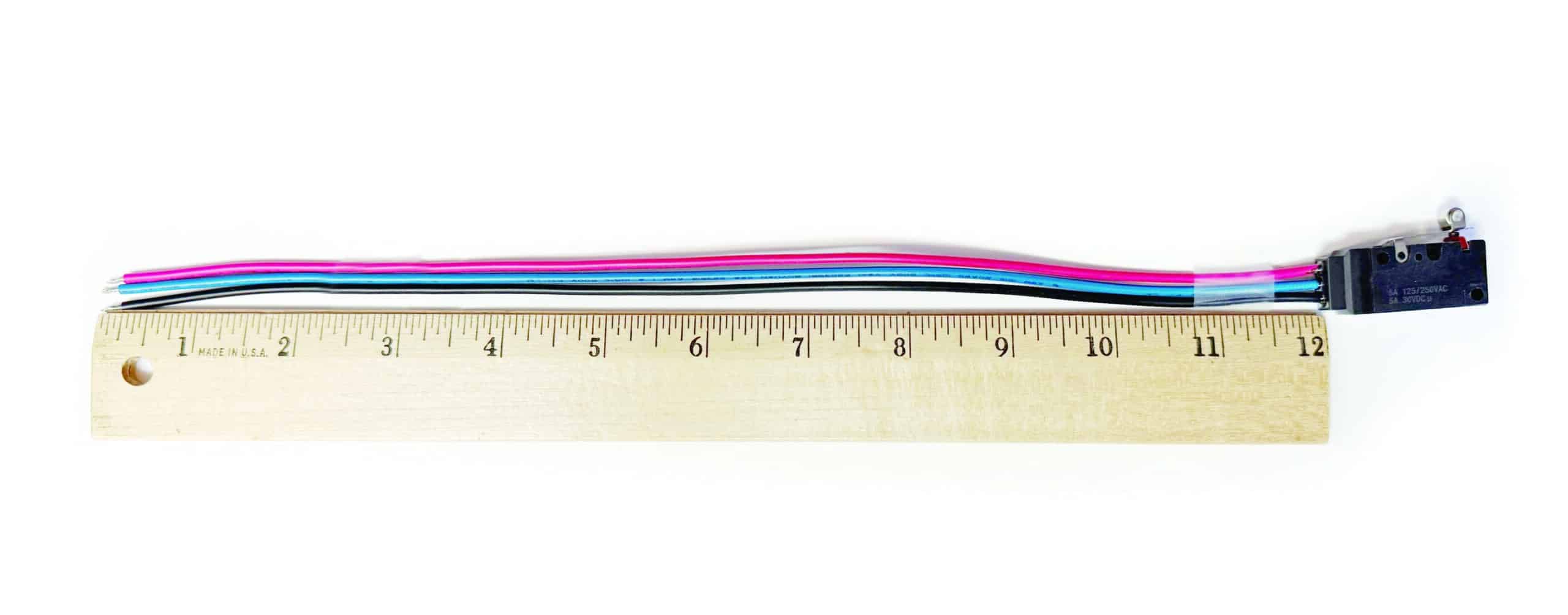

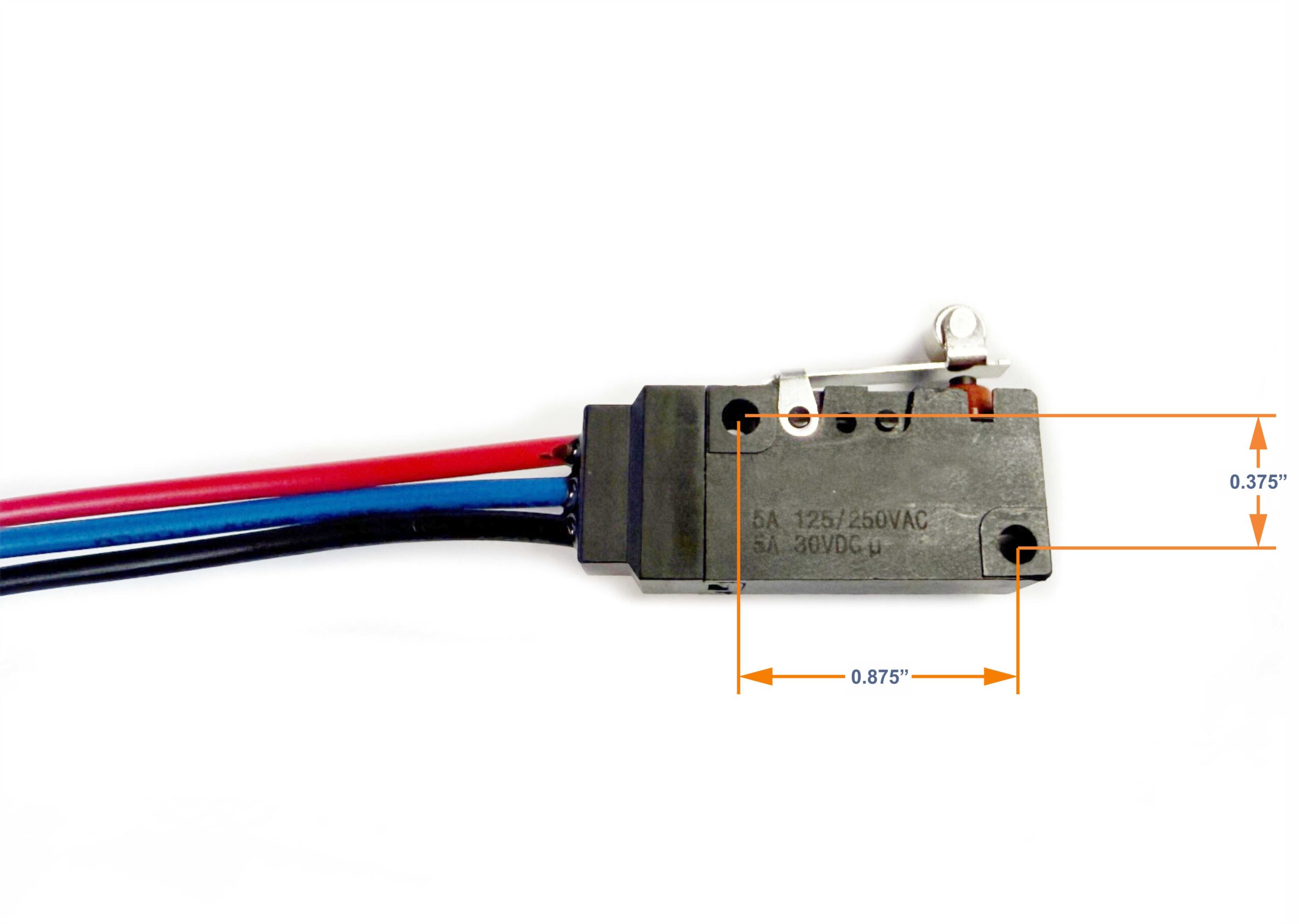

The rugged switch has a positive snap-action tactile feel and is environmentally sealed. The switch body and connections are encapsulated in urethane inside a robust enclosure. There are two mounting holes on the switch which allow the switch to be secured to any convenient mounting surface. The dimensions of the switch are 1.5” long x 1/2” wide x 1” high (including the switch actuator). The wire leads are 12” long. The switch is rated at 5A @ 125/250VAC and 5A @ 30VDC.

It is ideal for use with our limit switch controls RF12V1PR-LS, RF24V1PR-LS, LRF120VPR1L-LS, LRF120V-2PR1L and LRF240V-2PR1L

Proudly made in the USA.

Specifications

• Common, Normally Open and Normally Closed connections
• Positive snap-action tactile feel
• Rated at 5A @ 125/250VAC, 5A @ 30VDC
• Waterproof
• 12 inch wire leads
• 1.5” long x 1/2” wide x 1” high (including the switch actuator).
